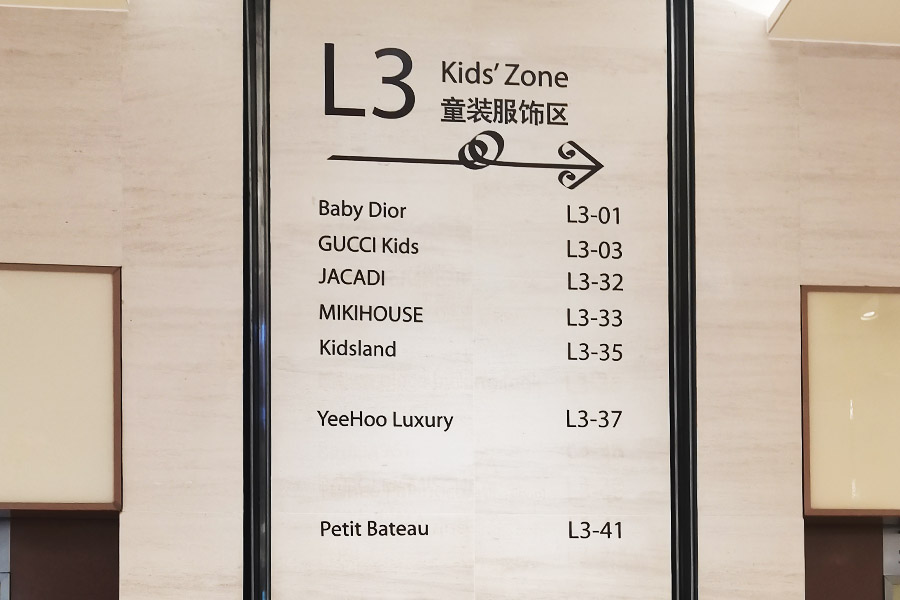

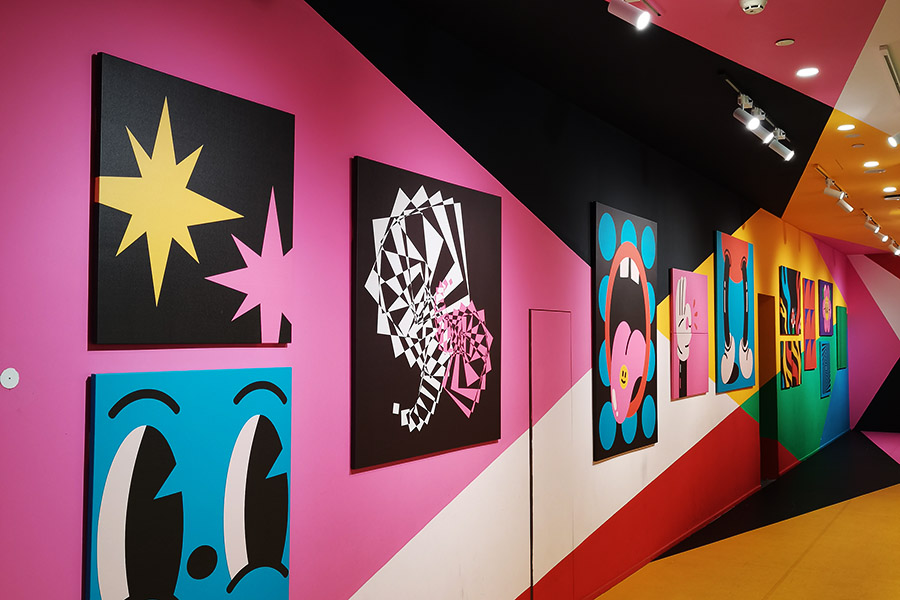

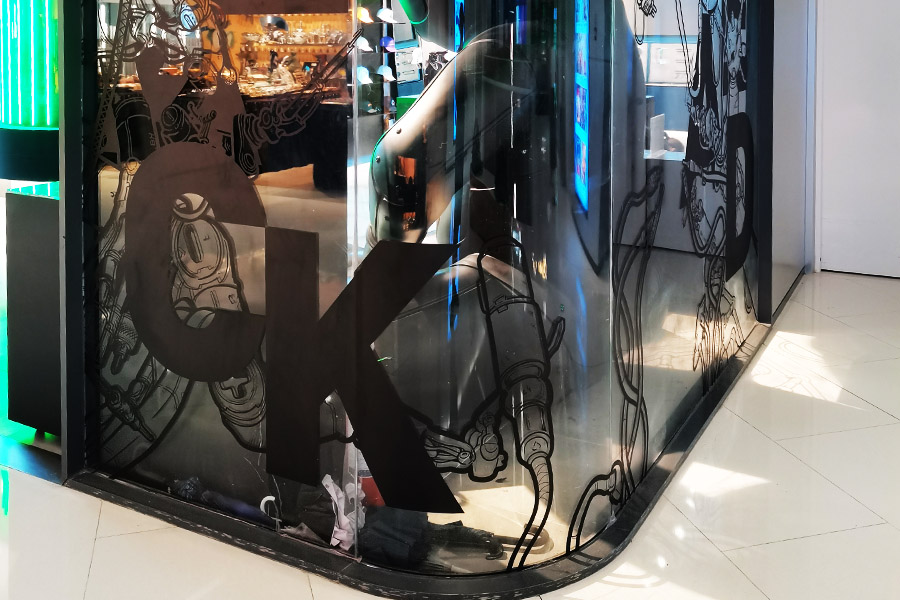

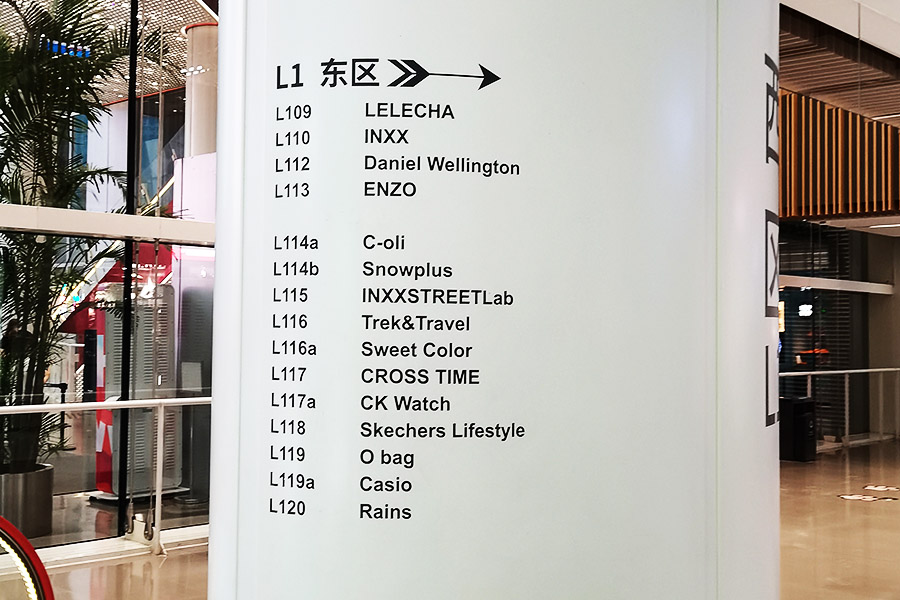

BP-TECK G/M-2000 series plotter film adopt high-gloss pure matte high-quality PVC film, which ensures the color purity of product. The special adhesive can not only avoid warping issue , but also minimize the glue residue. This series of products are widely used in advertising display, store decoration, exhibition display, road signs, glass decoration, mall&supermarket window display and so on.

Introduction:

One-year Plotter Film    Outdoor durability:6-8months  Indoor durability:24 months

Characteristics:

Face film:Monomeric flexible calendered PVC film ,thickness:80um

Adhesive:Pressure sensitive acrylic removable adhesive

Liner:120gsm one-side PE-coated high-density white wood-pulp paper

Typical use:

Mainly used in company logo display, advertising display, logo signs, glass decoration, store decoration, car decoration, bus system, truck decoration, road signs, door head decoration, ship decoration,etc

Durability:

The expected vertical outdoor durability of unprocessed products in Central Asia (Zone 1) can reach 3-6 months.

This information is based on successful practical experience.

Notes:

The durability is based on Eastern China exposure conditions. Actual performance life will depend on substrate preparation, exposure conditions and maintenance of the marking. For instance, in the case of signs facing north; in areas of long high temperature exposure, in industrially polluted areas or high altitudes, exterior performance will be decreased.

Shelf life:

Temperature range:Store at 15 to 25°C/±50%RH,shelf life is 12 month

Temperature range：

Application:+ 20°C to + 40°C

Final application:- 25°C to + 70°C

Attention:If temperature is lower,pls contact us.

Product Usage:

Cutting Plotter

It can be used in most plotter for fast and barrier-free cutting. It is important to adjust the cutting depth: if the cutting depth is too deep, it may cause the paper to split and fall off with the adhesive when the lettering film is transferred to the application tape.

Application method:

1, carving

2, discharging waste.

3.Select a transfer film with appropriate viscosity, stick it on the content to be transferred and peel it off.

4. Clean the carrier, transfer the carved content and press it several times.

5.Peel off the transfer film.
